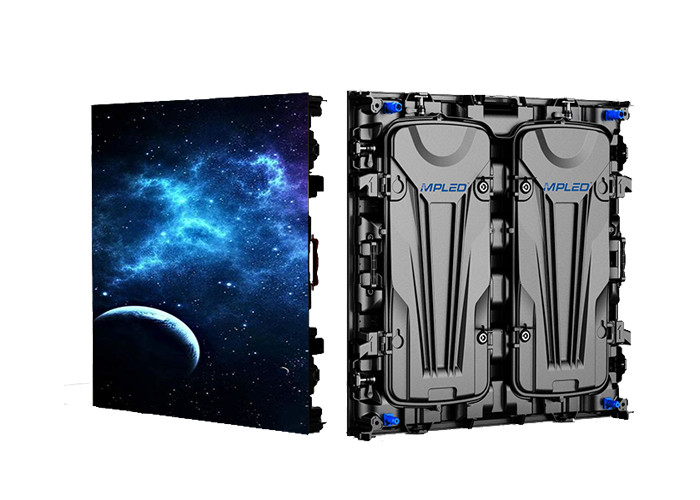

waterproof high brightness single pillar type P8 giant outdoor led
screens
Product description
1. Common-cathode engery saving tech work with energy saving dring
IC,it can effectively save energy by more than 40%,in the process
of long-term use, it will save cost a lot.
2. Easy to install, fast lock in only 20 seconds, CNC
high-precision processing, high-precision seamless splicing
3. Including power supply, boards, cables, modules, and at the same
time meet the front and rear maintenance
4. Fanless design prevents dust and water vapor from being brought
into the cabinet
5. The most advanced automated production equipment and
professional team, selection of first-class raw materials, strict
raw materials and process control
6. IP65/IP54 high protection level, adapt to various harsh
environments
| Pixel Pitch | 8mm |
| LED Lamp | SMD3535 |
| LED configuration | SMD 3 in 1 |
| Module Size | 320mm x 160mm |
| Module pixels | 40x20dots |
| Cabinet Size(WxHxD)(mm) | 960x960x101mm |
| Module Quantity(pcs) | 18 |
| Pixel Density | 120x120dots |
| Cabinet pixels | 14400 dots |
| Cabinet Material | Magnesium alloy |
| Cabinet Weight (kg) | 29 |
| Average Power/sqm (watts) | 240 |
| Max Power/sqm(watts) | 800 |
| Brightness | 6500cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 8-100 meters |
| Brightness Control | 256 level |
| Gray scale | 14 bit |
| Refresh frequency | 1920hertz |
| Driving mode | 1/5 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP65 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs,
you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all
product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken
by us to assure that the goods are in a good condition during
storage and delivery.
Q6: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election
of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in
Russia
2019, MPLED P2.97 stage led display stand the stage for Senator
Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in
Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in
Kuwait landmark
