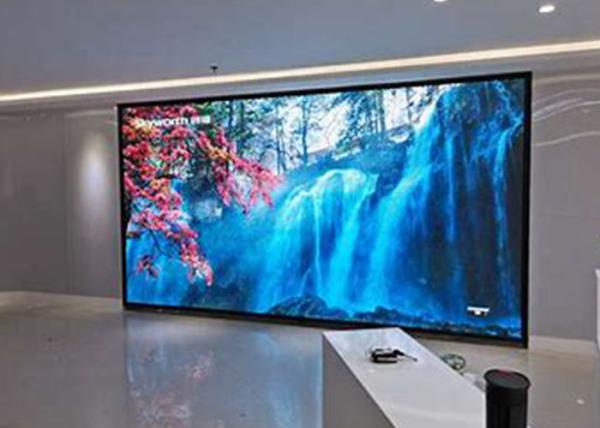

16:9 Small Pixel Pitch 4k P1.875 Indoor Seamless Fixed Led Video Wall Screen
Product description
1. Allowing for multiple installation methods and full front & rear maintenance, offering extreme flexibility to various application environments.Wall-mounting Installation/ Mobile Stand Installation
2. Supporting installlation and maintenance while live working
3. Various dimensions are created to meet the diversified meeting
room requirements.
4. Display in splicing contents, showcase in one screen
5. Wireless Screen sharing, one-click information releasing
Pixel Pitch | 1.8mm | |||
LED Lamp | SMD1515 | |||
IC | ICN2153 | |||
Module Size | 320x160mm | |||
Module pixels | 172x86dots | |||
Cabinet Size(WxH)(mm) | 680x480mm | |||
Module Quantity(pcs) | 6 | |||
Cabinet resolution WxH | 344x256dots | |||
Cabinet Material | Aluminum die casting | |||
Cabinet Weight (kg) | 7 | |||
Average Power/sqm (watts) | 200 | |||
Max Power/sqm(watts) | 600 | |||
Brightness | 800cd/㎡ | |||
Viewing Angle | H:160°, V:120° | |||
Best Viewing Distance | 1.8-200 meters | |||
Brightness Control | 256 level | |||
Gray scale | 16 bit | |||
Refresh frequency | 3840hertz | |||
Driving mode | 1/43 scan | |||
Input power frequency | 50 or 60 Hertz | |||
Input Voltage | 110 ~ 240 Volt,60Hz | |||
Blind spot rate | <1/10000 | |||
Lifetime at 50% brightness | 100000 hours | |||
Ingress Protection | IP30 | |||
Operating temperature | ﹣20 ~﹢60 ℃ | |||
Operating humidity | 10% ~ 90% | |||
Control distance | CAT5 cable:<100 m; Single mode fiber:<10 km | |||
Signal input format | HDMI,DVI,SDI,VGA etc. | |||
Operating system | Windows (2000/XP/Vista/7/8/10) |
FAQ
Q: Are you manufacturer or trade company?
A: We are manufacturer,
Q: Do you offer OEM&ODM service?
A: Yes, we do.
Q: What’s the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS certification.
Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences,
Governments,Banks,Churches, Highways,Airports,Parliaments,Education
institutes,Hotel,Private corporate conference hall and so on.
Q: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election
of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
![]() |
