Wall Mounted Front Maintenance Seamless 90 Degrees Fixed Ultra Thin
Led Displayy
Product description

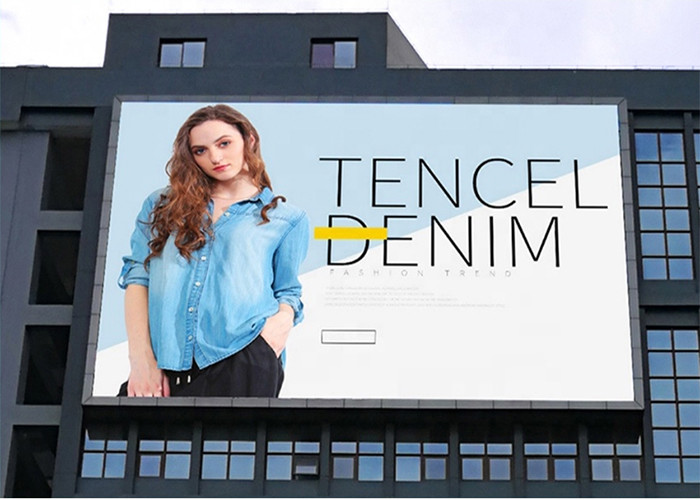

1. Advertising billboards, landmark billboards, street view
billboards, digital billboards, transportation hub billboards,
stadiums.
2. From the overall layout of PCB design, the product strictly
follows the design standards of EMC testing, and has the
performance that can withstand higher standards of electromagnetic
compatibility testing. Every detail is to improve the overall
stability of the display device.
3. 3 seconds lock type installation to complete a module, save the
cost of manual installation, improve work efficiency, easy
maintenance.
4. The cabinet body is processed by CNC, with only ±0.1mm
tolerance, and 3 times precision that of the iron/steel cabinet
body.
5. Thin Panel,Convenient Transport,Save Transport Cost.
6. One screen,virous pixel pitch options.Just replace LED modules
to update led screen with higher reolution one after many years.
7. Super strong anti-UV, anti-level 12 storm, anti-severe cold,
corrosion resistance, adapt to various harsh environments.
8. By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc.
Yes, you can control in your convenient management. Many screens
together? No problem, your laptop can manage all of them whenever
and wherever.
| Pixel Pitch | 10mm |
| LED Lamp | SMD3535 |
| LED configuration | SMD 3 in 1 |
| Module Size | 320mm x 160mm |
| Module pixels | 32x16dots |
| Cabinet Size(WxHxD)(mm) | 960x960x101mm |
| Module Quantity(pcs) | 18 |
| Pixel Density | 96x96dots |
| Cabinet pixels | 9216 dots |
| Cabinet Material | Magnesium alloy |
| Cabinet Weight (kg) | 25 |
| Average Power/sqm (watts) | 200 |
| Max Power/sqm(watts) | 600 |
| Brightness | 7000-7500cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 10-100 meters |
| Brightness Control | 256 level |
| Gray scale | 14 bit |
| Refresh frequency | 1920hertz |
| Driving mode | 1/2 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP65 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
