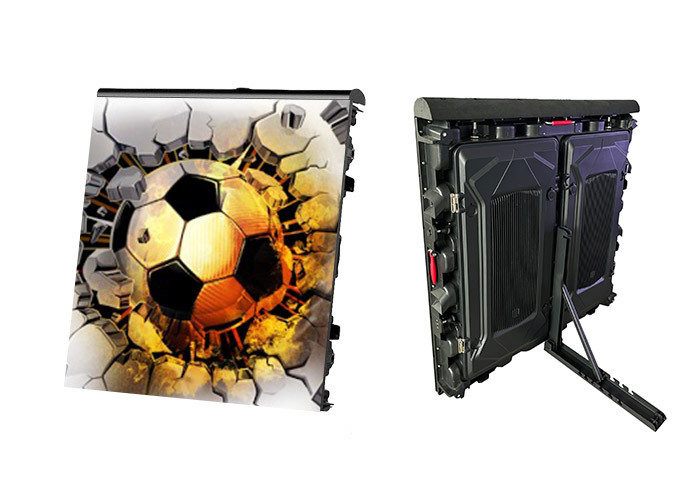

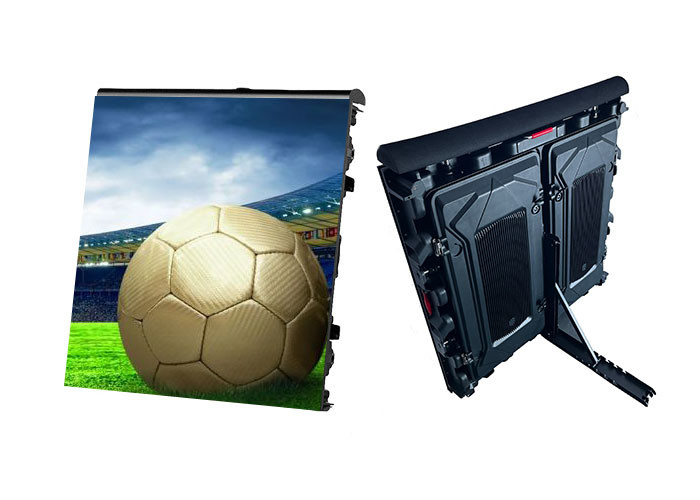

Full Color Sport Perimeter LED Display SMD3535 For Stadium
Full Color High Definition Led Perimeter Display For Stadium
Display
Product description
1. Meet a variety of fence screen applications: football, ice
hockey, basketball.
2. Air box packaging, moisture-proof and dust-proof, save space,
and save time and effort for on-site transportation.
3. The cabinet adopts an adjustable tilt angle design, which can
adjust the appropriate tilt angle (75°-90°) according to different
environmental requirements, which can meet the viewing needs of
on-site audiences.
4. The stadium screen uses a soft mask and a soft material covering
the upper part, which can protect the LED lamp beads and avoid
obvious injuries caused by collisions.
5. The front of the module is filled with high-quality imported
glue, and there is a waterproof rubber ring on the back to improve
the waterproof performance of the display. It has high-performance
waterproof and dust-proof capabilities above IP65. It is displayed
all-weather and adapts to various harsh outdoor environments.
6. LED fence screens are mainly used for fenced advertisements and
information release in the stadium, which can display strip
advertisements of any length, and its enveloping advertising
information can effectively cover the entire sports field without
interruption.
| Pixel Pitch | 6.6mm |
| LED Lamp | SMD3535 |
| IC | ICN2037 |
| Module Size | 320x160mm |
| Module pixels | 48x24dots |
| Cabinet Size(WxHxD)(mm) | 960x960x108 mm |
| Module Quantity(pcs) | 18 |
| Cabinet resolution WxH | 144x144dots |
| Cabinet Material | Aluminum die casting |
| Cabinet Weight (kg) | 29 |
| Average Power/sqm (watts) | 240 |
| Max Power/sqm(watts) | 800 |
| Brightness | 6000cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 8-200 meters |
| Brightness Control | 256 level |
| Gray scale | 16 bit |
| Refresh frequency | 3840hertz |
| Driving mode | 1/6 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP65 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3.7/24 online remote control service , and local engineer service
within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years
experience.
7.Multiple options for global transportation, like FOB, CIF, DDP,
DDU to most countries.
Sole Agent
MPLED cooperated with local team to expand Led display business,
and signed sole agent in Saudi Arabia, Egypt, New Zealand, Germany
and Indonesia.
Also had local installation and maintenance team in Cambodia,
France, Middle East, Indonesia, United States, South Korea, Ghana.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity.For
defective batch products, we will repair them and resend them to
you or we can discuss the solution i
ncluding re-call according to real situation.
