Ultra Wide Viewing Angle Low Power Consumption P10 Time Square
Digital Billboard
Product presentation
1. IP65 waterproof level can ensure stable operation of the screen
even in extreme weather below:Typhoon,Rainstorm ,High Temperature
,Low Temperature ,High Humidity ,Salt Spray.
2. With 140°-160 ° ultra-wide viewing angle, the screen can be seen
from various positions.
3. Savings in Electricity Costs,300 Sqm, 5 years , Save $200,000 on
Electricity Costs.
4. The 304 stainless steel screws and locks, the aluminum panel,
and the double protection of strongly-insulated wires wrapped in
fiberglass, thereby ensuring longer service life of our products.

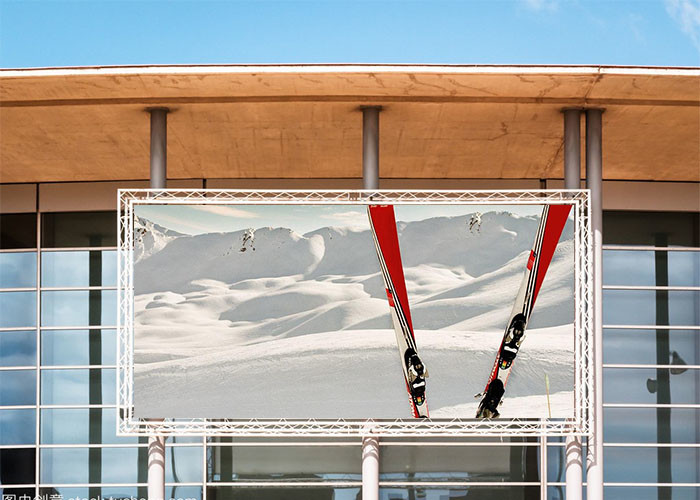

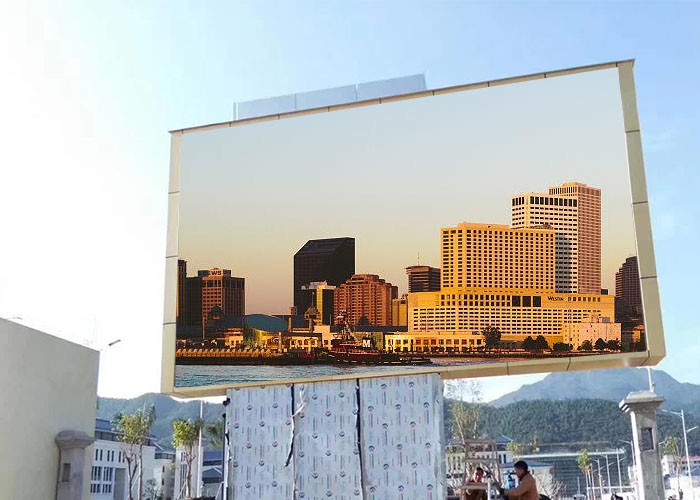

5. Advertising billboards, landmark billboards, street view
billboards, digital billboards, transportation hub billboards,
stadiums.
| Pixel Pitch | 10mm |
| LED Lamp | SMD3535 |
| LED configuration | SMD 3 in 1 |
| Module Size | 320mm x 160mm |
| Module pixels | 32x16dots |
| Cabinet Size(WxHxD)(mm) | 960x960x108mm |
| Module Quantity(pcs) | 18 |
| Pixel Density | 96x96dots |
| Cabinet pixels | 9216 dots |
| Cabinet Weight (kg) | 28 |
| Average Power/sqm (watts) | 200 |
| Max Power/sqm(watts) | 600 |
| Brightness Control | 256 level |
| Gray scale | 14 bit |
| Refresh frequency | 1920hertz |
| Driving mode | 1/2 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP65 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3.7/24 online remote control service , and local engineer service
within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years
experience.
7.Multiple options for global transportation, like FOB, CIF, DDP,
DDU to most countries.
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs,
you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all
product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken
by us to assure that the goods are in a good condition during
storage and delivery.
