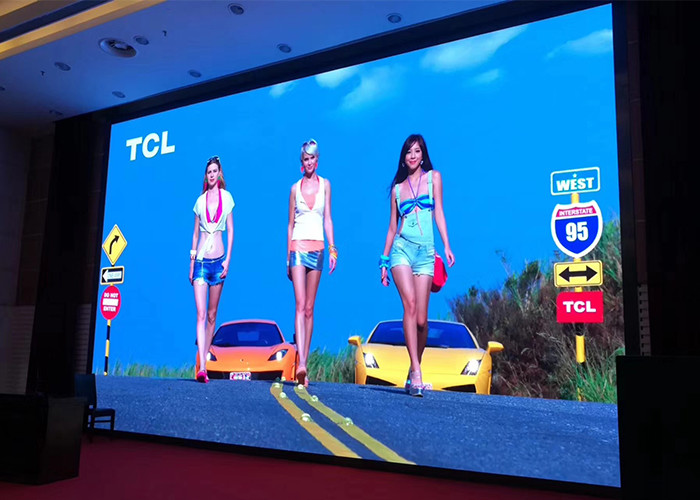

Full Color 3840Hz Led Panel Screen Indoor For Church Wall Mounted
Automatically Adjust Brightness Led Screen Panels For Church Wall
Mounted
Product description
1. Magnetically modules and fully front serviceable design, easy
installation and maintenance.
2. According to video size 16:9 and 4:3, the product fit the signal
of security monitoring, scheduling command cabinets form a 16:9
size LED display, also compatible with 4:3 video source to satisfy
clients requirement.
3. Modular design for modulesand cabinet, simplify the complex
connection, front installation and maintenance. plug and play.
military-grade signal connection.
4. Customized cabinet angle (0-90°)
5. Support three installation methods: hoisting, wall-mounted, and
floor-mounted installation
6. Support both front and rear installation, and full
front-accessible maintenance to save space.
| Pixel Pitch | 5 mm |
| LED Lamp | SMD2121 |
| IC | ICN2153s |
| Module Size | 320x160mm |
| Module pixels | 64x32dots |
| Cabinet Size(WxHxD)(mm) | 960x480mm |
| Module Quantity(pcs) | 9 |
| Cabinet resolution WxH | 192x96dots |
| Cabinet Material | Iron |
| Cabinet Weight (kg) | 13 |
| Average Power/sqm (watts) | 120 |
| Max Power/sqm(watts) | 400 |
| Brightness | 1000cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 5-200 meters |
| Brightness Control | 256 level |
| Gray scale | 16 bit |
| Refresh frequency | 3840hertz |
| Driving mode | 1/16 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP30 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
One- Stop Solution Service
1. 3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2. Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3. 7/24 online remote control service , and local engineer service
within 8 hours contact.
4. Free technical training in factory.
5. MPLED engineers will fly to the site if you need local service.
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs,
you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all
product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken
by us to assure that the goods are in a good condition during
storage and delivery.
