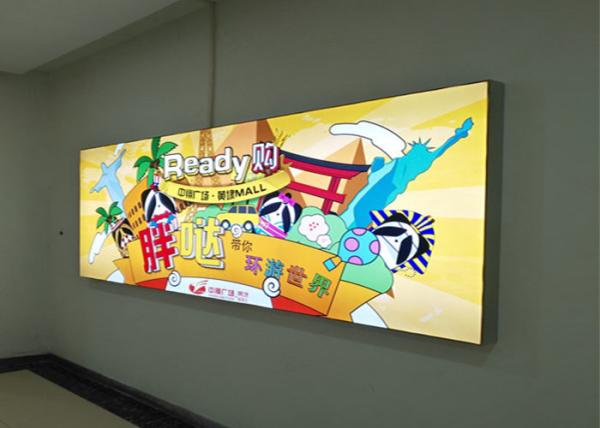

Indoor Led Display Signs Ultra Wide Viewing Angle Wall Mounted Type
Install
Product description
1. Four times to enhance the screen's grayscale performance, the
grayscale gradient is more natural, and the dark details of the
picture can be perfectly presented in low-light conditions.
2. Using the 16:9 golden ratio design, n² cabinets can be assembled
into a 16:9 large screen, and 2K, 4K, 8K screens can be easily
obtained. The product adopts a closed design and is delivered in
the form of a complete machine, with its own receiving card, power
supply, etc. The components are dust-proof and rodent-proof.
3. Modules, power supplies and internal cables can be replaced from
the front. The design of full front maintenance not only saves time
but also saves costs.
4. 1 + 1 backup--The main and standby power supply are installed in
the cabinet, which can switch automatically if malfunction happens.
5. Cabinet size, cabinet size can be customized according to
project demands.
| Pixel Pitch | 2.5 mm |
| LED Lamp | SMD2121 |
| IC | ICN2153s |
| Module Size | 320x160mm |
| Module pixels | 128x64 dots |
| Cabinet Size(WxHxD)(mm) | 960x960mm |
| Module Quantity(pcs) | 9 |
| Cabinet resolution WxH | 384x384 dots |
| Cabinet Material | Iron |
| Cabinet Weight (kg) | 28 |
| Average Power/sqm (watts) | 174 |
| Max Power/sqm(watts) | 580 |
| Brightness | 1200cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 2.5-200 meters |
| Brightness Control | 256 level |
| Gray scale | 16 bit |
| Refresh frequency | 3840hertz |
| Driving mode | 1/32 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP30 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
One- Stop Solution Service
1. 3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2. Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3.7/24 online remote control service , and local engineer service
within 8 hours contact.
4. Free technical training in factory.
5. MPLED engineers will fly to the site if you need local service.
6. Expanding market plan with professional MPLED team over 8 years
experience.
7. Multiple options for global transportation, like FOB, CIF, DDP,
DDU to most countries.
Senior Engineers
Over 17 years experience electronic engineer to support our
customized solutions for indoor and outdoor led display project.
Over 12 years experience structural engineer to support our
structure drawings .
10 years experience pre-sale and after-sale engineer for online
service and technology training.
Sole Agent
MPLED cooperated with local team to expand Led display business,
and signed sole agent in Saudi Arabia, Egypt, New Zealand, Germany
and Indonesia.
Also had local installation and maintenance team in Cambodia,
France, Middle East, Indonesia, United States, South Korea, Ghana.
FAQ
Q1:What’s the function?
A1:Support various formats,like VGA,Video,AVI,DAT,etc.
Q2:LED display modules are generally expressed in PX,such as P2 P3
P4...P8 P10,what does this mean?
A2:P3 P4...P8 P10 means that the pixel pitch is 3mm
4mm...10mm,which determines resolution of a display.Pixel pitch
smaller,led resolution higher.
Q3:What pixel pitch should I choose on my display?
A3:It’s mainly depends on the viewing distance,the size of the
display screen,the desired effect the application scenario and the
customer budget.
Q4:How to in stall?
A4:Free of charge to provide detailed steel structure drawings and
installation guidance and wiring diagram,free remote debugging.We
can also send our engineers to the site to guide the installation
if needed.
Q5:What about your quality?
A5:The quality of our display is excellent.We use the materials of
high quality suppliers.strictly control the production process,and
pass the multiple quality inspection to ensure that every product
is qualified.
Q6:How about the warranty?
A6:Two years warranty
Q7:What kind of display we provide?
A7:We have indoor/outdoor/rental/Advertising/transparent and poster
LED display for your choice.
