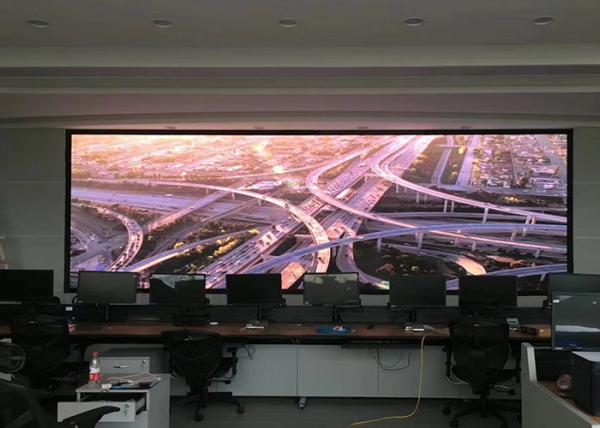

Background Led Video Display Board 1.5mm Pixel ICN2153 ROHS
Approved
Led Wall Tv Production Background Virtual Screens P1.5 LED Display
Product description
1. Support power and signal double backup design plan black screen
won’t appear even if one of the power,card and signal go wrong.
2. No need to add additional load-bearing structure, which can
effectively reduce installation costs.
3. Modules, receiving cards, and cables can be maintained from the
front, greatly reducing labor and steel structaure costs.
4. By applying hermetically sealed structure achieved highly
efficient heat dissipation function. led tv display
5. The wide viewing angle (H160° / V120° )covers a larger viewable
space and enables more viewers to experience the stunning details.
| Pixel Pitch | 1.5mm |
| LED Lamp | SMD1212 |
| IC | ICN2153 |
| Module Size | 320x160mm |
| Module pixels | 208x104dots |
| Cabinet Size(WxH)(mm) | 680x480mm |
| Module Quantity(pcs) | 6 |
| Cabinet resolution WxH | 516x312dots |
| Cabinet Material | Aluminum die casting |
| Cabinet Weight (kg) | 7 |
| Average Power/sqm (watts) | 200 |
| Max Power/sqm(watts) | 600 |
| Brightness | 800cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 1.8-200 meters |
| Brightness Control | 256 level |
| Gray scale | 16 bit |
| Refresh frequency | 3840hertz |
| Driving mode | 1/26 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP30 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3.7/24 online remote control service , and local engineer service
within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years
experience.
7.Multiple options for global transportation, like FOB, CIF, DDP,
DDU to most countries.
FAQ
Q1:What is the control system? How is it?
A:We use Nova Taurus Series asynchronous control system. Support
cluster play and managementSupportAPP/PhoneWIFIIpad/Laptop/PC/Cloud
control. It's very easy and convenient to control.
Q2:What is your best service?
A:One to one sales engineer to customer responsibility system. We
will do:
1. Know your proiect and provide the best solution for it
2. Track your order and let you know each step and detail of it:
3. Teachyou how to install and use the screen;
4. Care the subsequent use of your screen and ensure vour after
-sales service be well
Q3:How about your delivery time?
A:Generally. it will take 15 to 25 days after receiving your
advance payment. The spe- cific delivery time depends on the items
and the quantity of your order.
Q4:How about your Warranty Term?
A:2-5year warranty. Structure design,installation problem,program
the screen. how to use the screen... don't worry,we have
professional after-sale team to solve your any questions after you
placed an order. And your exclu-sive sales engineer will also help
you get over any problems.
