ICN2153 Rental LED Displays Video Wall P3 Wide Color Gamut Monitors
P3 Wide Color Gamut Monitors P2 P3 P4 Portable Led Video Wall
Product presentation
1. Die casting Aluminum panels is stronger structure, each panel is
8kg,very light weight to carry and install .Even after long time,
the LED screen won't change shape under pressure.
2. Safe & Reliable Professional Certification of Safety.
3. Quickly solve the power failure of the power box without
disassembly.When a power failure, power cord failure or aviation
plug failure occurs, the adjacent cabinets will share the output
current to make the screen display normally.
4. Rental LED screen offers a wide range of benefits. Previously,
the video walls and projectors were used for this purpose. Now,
with rental LED screens, it is possible to have larger and brighter
screens, capturing the event attendees’ attention.
5. For small-sized exhibitions,A smart phone connects the sending
card or the video processor directly without needing a
computer.Manage, edit, and send the program through an APP on the
smart phone.Display a picture of any size within the resolution of
3,840*2,160.
6. Automatic Calibration ,Calibration data will be updated
automatically when the module is replaced.
7. HDR Technology ,High resolution, 16bit high gray level, Support
10bit video.
| Pixel Pitch | 2.6mm |
| LED Lamp | SMD2121 |
| IC | ICN2153 |
| Module Size | 250x250mm |
| Module pixels | 96x96dots |
| Cabinet Size(WxHxD)(mm) | 500x500x88 mm |
| Module Quantity(pcs) | 4 |
| Cabinet resolution WxH | 192x192dots |
| Cabinet Material | Aluminum die casting |
| Cabinet Weight (kg) | 7.5 |
| Average Power/sqm (watts) | 200 |
| Max Power/sqm(watts) | 650 |
| Brightness | 800-1000cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 2.6-200 meters |
| Brightness Control | 256 level |
| Gray scale | 16 bit |
| Refresh frequency | 3840hertz |
| Driving mode | 1/32 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP30 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor 2.6 MM
Q2: Where is it used for?

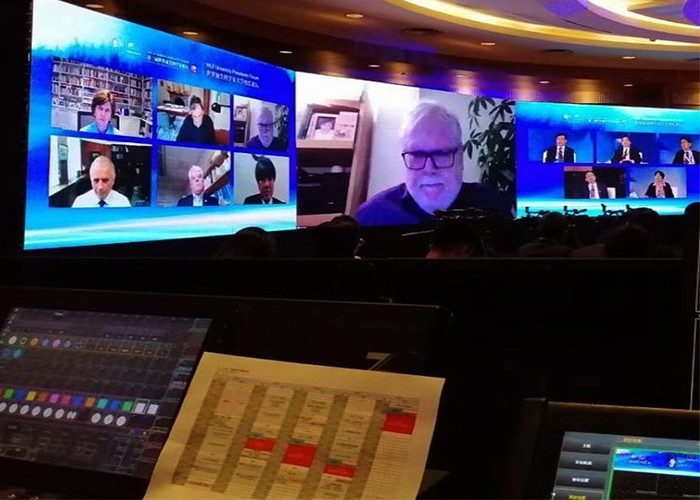

A2: Indoor rental use. Widely used for backdrop of staging event,
rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling
system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar.
Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We
will offer the suitable solution for your project size. I will
appreciate it if any drawing files about installation offered.
LED display,also called led screen, led video wall, or led sign,
with its unique advantages,has gradually replaced the traditional
billboards, light boxes,projectors etc. LED display has become a
new force in the media industry.
