64x64 Dots P3 Stage Rental LED Screen For Wedding Stage Decoration
Die Casting Aluminum P3 Big Screen Rental For Wedding Stage
Decoration
Product presentation
1. New design without fans, no noise and lower consumption with
handlebar. We can print your logo or company name on our cabinet
and flight case for free.
2. Ultra thin,super slim and hanging design make it easy and fast
for assemble and disassemble.
3. The PCB board thickness of is 1.6mm.Compared with the ordinary
PCB board, the circuit layout is more reasonable, with better heat
dissipation effect, and more stable working condition.
4. Due to its stacking, hanging and curved installation options,
the Black Pearl LED panels offer flexible solutions for both rental
and fixed installation applications. Through concave or convex
curving a large field of view and a more immersive experience can
be created.
5. Never black screen even current backup for power supply, when
any power supply is not working other power supplies will provide
power to keep the screen working.
6. Click-Lock—True Single-Person Installation,Only three steps
needed: click to pop up the King PIN; stack the tiles and they lock
automatically; push the clasp inward with fingers to double-lock.
7. Modular Maintenance Faster and easier on-site maintenance
Magnetic tool for module front service; free of tool for module
rear service in 15s ,Easy modularized maintenance for power box in
10s
| Pixel Pitch | 3.91mm |
| LED Lamp | SMD2121 |
| IC | ICN2153 |
| Module Size | 250x250mm |
| Module pixels | 64x64 dots |
| Cabinet Size(WxHxD)(mm) | 500x500x88 mm |
| Module Quantity(pcs) | 4 |
| Cabinet resolution WxH | 128x128dots |
| Cabinet Material | Aluminum die casting |
| Cabinet Weight (kg) | 7.5 |
| Average Power/sqm (watts) | 200 |
| Max Power/sqm(watts) | 650 |
| Brightness | 1200cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 3.91-200 meters |
| Brightness Control | 256 level |
| Gray scale | 16 bit |
| Refresh frequency | 3840hertz |
| Driving mode | 1/16 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP30 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3.7/24 online remote control service , and local engineer service
within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years
experience.
7.Multiple options for global transportation, like FOB, CIF, DDP,
DDU to most countries.
FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor 3.91 MM
Q2: Where is it used for?

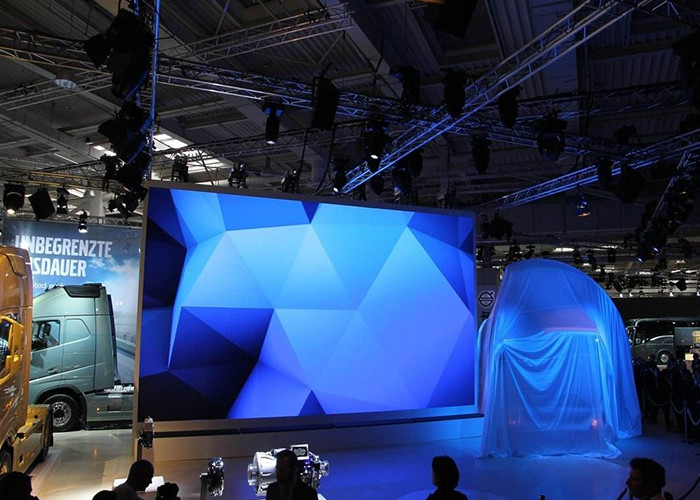

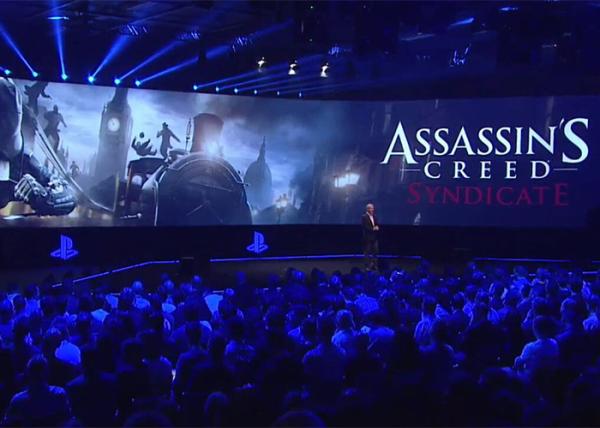

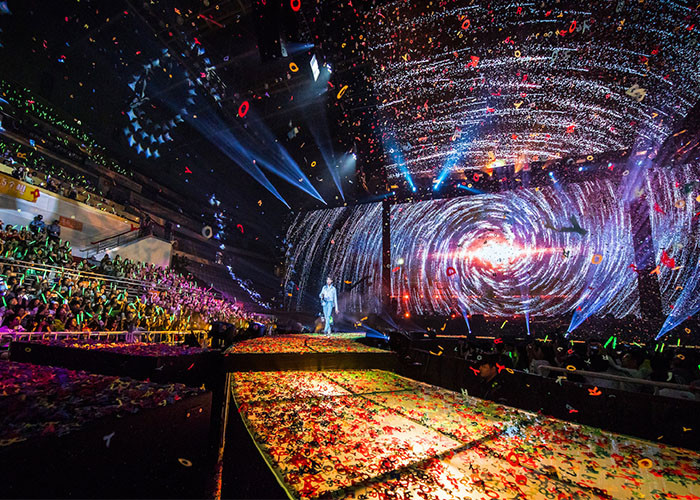

A2: Indoor rental use. Widely used for backdrop of staging event,
rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling
system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar.
Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We
will offer the suitable solution for your project size. I will
appreciate it if any drawing files about installation offered.
LED display,also called led screen, led video wall, or led sign,
with its unique advantages,has gradually replaced the traditional
billboards, light boxes,projectors etc. LED display has become a
new force in the media industry.
