P2 Advertising Flexible LED Displays 120x60 Dots Indoor Video Wall
Building Flexible P2 Indoor LED Display Video Wall Advertising Sign
Product description
1. Can be bent, folded, wound, suspended, etc., freely combined into
various shapes, artistic and creative.
2. The led soft module series are available in P1.875/P2/P2.5/P3/P4
specifications.

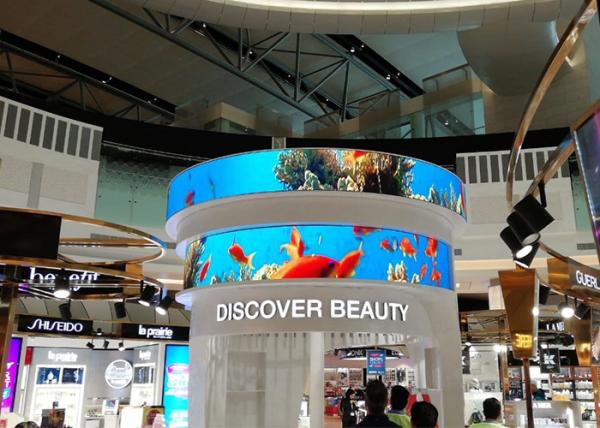

3. Applicable to the cylindrical design of units, shopping malls,
bars, stage backgrounds, exhibition halls, planning exhibition
halls, etc.
4. Meet the personalized design, use a variety of complex
environments, the viewing angle brightness is better. after 24
hours of high and low temperature testing, no degumming, no
corners.
5. The difference is that a flexible PCB and a bottom shell mask
are used, which makes the module extremely soft and can be folded
at 120 degrees.
6. If it is an inner arc-shaped led display screen and the arc is
not very large, it is better to do it. As long as the steel
structure of the display screen is made into an arc shape and
installed with a conventional indoor display module, it can be
completed. However, if the inner arc is relatively large, or the
outer arc is relatively large, then it is impossible to make it
with a conventional display module, and it is very good to use a
LED soft module.
| Pixel Pitch | 2mm |
| LED Lamp | SMD1515 |
| LED configuration | SMD 3 in 1 |
| Module Size | 240mm x120mm |
| Module pixels | 120x60 dots |
| Average Power/sqm (watts) | 159 |
| Max Power/sqm(watts) | 530 |
| Brightness | 800cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 2-200 meters |
| Brightness Control | 256 level |
| Gray scale | 14 bit |
| Refresh frequency | 3840hertz |
| Driving mode | 1/30 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP31 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
Projects
2017, MPLED P6 outdoor led display assist for Senator Election of
South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in
Russia
2019, MPLED P2.97 stage led display stand the stage for Senator
Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in
Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in
Kuwait landmark
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3.7/24 online remote control service , and local engineer service
within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years
experience.
7.Multiple options for global transportation, like FOB, CIF, DDP,
DDU to most countries
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs,
you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all
product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken
by us to assure that the goods are in a good condition during
storage and delivery.
