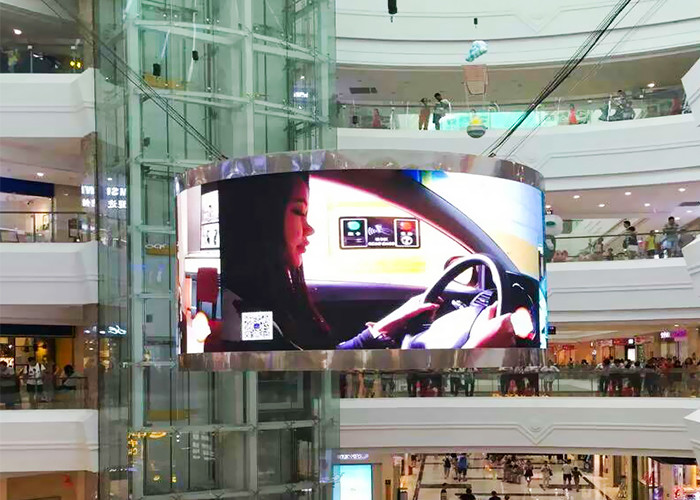

Shopping Malls P4 Flexible LED Displays Module 3840 Hertz Curved
Led Video Wall
Curved LED Display Indoor P4 Soft LED Module Curved Flexible Led
Display Screen
Product description
1. The light-emitting device uses red, green, and blue
high-brightness dies, each with 256 gray levels, and a total of
16,777,216 colors can be achieved. It is true color in the true
sense and can be enjoyed by audiences within a radius of tens of
meters. To high-definition and high-quality video content.
2. Within the visible distance, when the sun shines directly on the
screen surface, the display content is still clearly visible.
3. Using distributed scanning technology and modular design
technology, high reliability and stability.
4. The edited content of the computer is sent to the system control
card, and the edited content can be displayed, and the system
operation is very convenient.
5. Shopping malls, enterprises, schools, stages, banks, securities,
public security, transportation, industry and commerce,
electricity, customs, hospitals, parks, airports, stations,
stadiums and other fields.
| Pixel Pitch | 4mm |
| LED Lamp | SMD2121 |
| LED configuration | SMD 3 in 1 |
| Module Size | 240mm x 120mm |
| Module pixels | 60x30dots |
| Average Power/sqm (watts) | 186 |
| Max Power/sqm(watts) | 620 |
| Brightness | 1000cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 4-200 meters |
| Brightness Control | 256 level |
| Gray scale | 14 bit |
| Refresh frequency | 3840 hertz |
| Driving mode | 1/15 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP31 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
Projects
2017, MPLED P6 outdoor led display assist for Senator Election of
South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in
Russia
2019, MPLED P2.97 stage led display stand the stage for Senator
Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in
Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in
Kuwait landmark
One- Stop Solution Service
1. 3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2. Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3. 7/24 online remote control service , and local engineer service
within 8 hours contact.
4. Free technical training in factory.
5. MPLED engineers will fly to the site if you need local service.
6. Expanding market plan with professional MPLED team over 8 years
experience.
7. Multiple options for global transportation, like FOB, CIF, DDP,
DDU to most countries.
Sole Agent
MPLED cooperated with local team to expand Led display business,
and signed sole agent in Saudi Arabia, Egypt, New Zealand, Germany
and Indonesia.
Also had local installation and maintenance team in Cambodia,
France, Middle East, Indonesia, United States, South Korea, Ghana.
FAQ
Q1: What’s the function?
A1: Support various formats,like VGA,Video,AVI,DAT,etc.
Q2: LED display modules are generally expressed in PX,such as P2 P3
P4...P8 P10,what does this mean?
A2: P3 P4...P8 P10 means that the pixel pitch is 3mm
4mm...10mm,which determines resolution of a display.Pixel pitch
smaller,led resolution higher.
Q3: What pixel pitch should I choose on my display?
A3: It’s mainly depends on the viewing distance,the size of the
display screen,the desired effect the application scenario and the
customer budget.
Q4: How to in stall?
A4: Free of charge to provide detailed steel structure drawings and
installation guidance and wiring diagram,free remote debugging.We
can also send our engineers to the site to guide the installation
if needed.
Q5: What about your quality?
A5: The quality of our display is excellent.We use the materials of
high quality suppliers.strictly control the production process,and
pass the multiple quality inspection to ensure that every product
is qualified.
Q6: How about the warranty?
A6: Two years warranty
Q7: What kind of display we provide?
A7: We have indoor/outdoor/rental/Advertising/transparent and
poster LED display for your choice.
