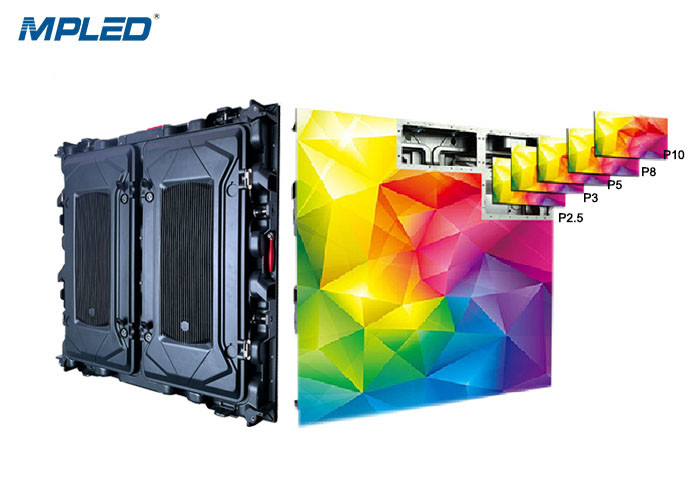

P4 Commercial Led Display Screen Single Pillar Type IP65 Outdoor
Video Wall
960x960mm Commercial Single Pillar Type High Definition P4 Led
Outdoor Signs
Product presentation
1. Common-cathode engery saving tech work with energy saving dring
IC,it can effectively save energy by more than 40%,in the process
of long-term use, it will save cost a lot.
2. The heat dissipation capacity is 10 times that of the
traditional iron/steel cabinet, and the cabinet itself is the first
level of heat
dissipation.
3. There are quick locks on the top and bottom and left and right
sides of the box. Installation is faster. Better flatness and
consistency.
4. Modules, power supplies and control cards can also be
disassembled directly from the front without leaving a maintenance
channel.
5. 3 seconds lock type installation to complete a module, save the
cost of manual installation, improve work efficiency, easy
maintenance.
6. From the overall layout of PCB design, the product strictly
follows the design standards of EMC testing, and has the
performance that can withstand higher standards of electromagnetic
compatibility testing. Every detail is to improve the overall
stability of the display device.
| Pixel Pitch | 4mm |
| LED Lamp | SMD1921 |
| LED configuration | SMD 3 in 1 |
| Module Size | 320mm x 160mm |
| Module pixels | 80x40dots |
| Cabinet Size(WxHxD)(mm) | 960x960x108mm |
| Module Quantity(pcs) | 18 |
| Cabinet resolution WxH | 240x240dots |
| Cabinet Material | magnesium alloy |
| Cabinet Weight (kg) | 29 |
| Average Power/sqm (watts) | 240 |
| Max Power/sqm(watts) | 800 |
| Brightness | 6000cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 4-200 meters |
| Brightness Control | 256 level |
| Gray scale | 14 bit |
| Refresh frequency | 1920hertz |
| Driving mode | 1/10 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | Input Voltage |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP65 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
SHENZHEN MP LED TECHNOLOGY CO., LTD
Projects
2017, MPLED P6 outdoor led display assist for Senator Election of
South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in
Russia
2019, MPLED P2.97 stage led display stand the stage for Senator
Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in
Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in
Kuwait landmark
One- Stop Solution Service
1. 3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2. Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3. 7/24 online remote control service , and local engineer service
within 8 hours contact.
4. Free technical training in factory.
5. MPLED engineers will fly to the site if you need local service.
6. Expanding market plan with professional MPLED team over 8 years
experience.
7. Multiple options for global transportation, like FOB, CIF, DDP,
DDU to most countries.
