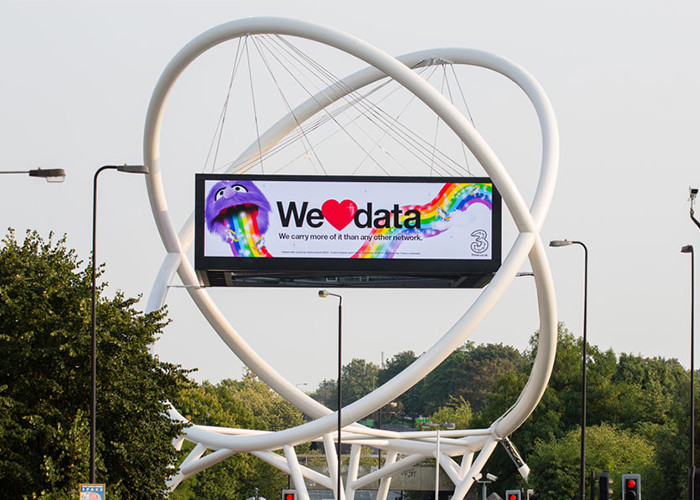

P8 P10 P6 Outdoor Led Video Wall Waterproof IP68 Advertising
Billboards
P6 P8 P10 led display panels waterproof grade IP68 thin advertising
billboards
Product presentation
1. Nice appearance and simple structures.
2. Lightweight. Convenient in transporting and installing & saving
labor cost, suitable for flow shows.
3. The advertising contents can be changed at any time, for
different customers and various advertisements.
4. It can turn on and turn off the screen by software timing or
manually at any time, achieving unattended function.
5. Clear and bright even in strong outdoor direct Sunlight.
6. The most advanced automated production equipment and
professional team, selection of first-class raw materials, strict
raw materials and process control.
7. High Brightness,High Gray Scale,High Contrast Ratio,High Refresh
Rate,Wide color gamut,High level driving IC.
8. The 304 stainless steel screws and locks, the aluminum panel,
and the double protection of strongly-insulated wires wrapped in
fiberglass, thereby ensuring longer service life of our products.
9. Fanless design prevents dust and water vapor from being brought
into the cabinet.
| Pixel Pitch | 6.6mm |
| LED Lamp | SMD3535 |
| LED configuration | SMD 3 in 1 |
| Module Size | 320mm x 160mm |
| Module pixels | 48x24dots |
| Cabinet Size(WxHxD)(mm) | 960x960x108mm |
| Module Quantity(pcs) | 18 |
| Pixel Density | 144x144dots |
| Cabinet pixels | 20736 dots |
| Cabinet Weight (kg) | 28 |
| Average Power/sqm (watts) | 200 |
| Max Power/sqm(watts) | 600 |
| Brightness Control | 256 level |
| Gray scale | 14 bit |
| Refresh frequency | 1920hertz |
| Driving mode | 1/6 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP68 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
SHENZHEN MP LED TECHNOLOGY CO., LTD ( Product Solution)
1. Mature customized solution team with engineers support.
2. Serious material and procedure QC such as 72 hours working test,
shock proof test, waterproof test, material checkout, damp proof
package, etc.
3. Product updates each quarter to do improvement and innovations
to help our clients win more projects in their market.
4. Make our products more and more standard to save cost for
clients, such as same cabinet for many different pixel pitch led
modules, and P3.91, P4.81 of stage led module can also use for
indoor fixed installation WT/WD series.
FAQ
Q1: Such as P2 P3 P4..... P8, P10, what does this mean?
A: P3 P4..... P8,P10 means that the pixel pitch is 3mm 4mm....
10mm, which determines resolution of a display .Pixel pitch is
smaller, led display resolution is higher.
Q2: What pixel pitch should I choose on my display?
A: Using the MG PRO screen, it is determined mainly by the viewing
distance, the size of the display screen, the desired effect and
the customer budget.
Q3: To order a display ,What kind of information do I have to offer
you?
A: You should provide width/height of the display, the main use,
the viewing distance, the scene photos, special requirements,then I
can provide you with a detailed list of quotations.
Q4: How to install?
A: Free of charge to provide detailed steel structure drawings and
installation guidance and wiring diagram,free remote debugging. We
can also send our engineers to the site to guide the installation
if needed.
Q5: What about your quality?
A: The quality of our display is excellent. We use the materials of
high quality suppliers in the world,strictly control the production
process, and pass the multiple quality inspection to ensure that
every product is qualified.
Q6: What about the warranty?
A: Two year warranty
Q7: What about the lead time?
A: Orders less than 50 square meter display, lead time is 15
working days.
Q8: Can I order a sample?
A: Yes,We welcome customers to order samples to check our product
quality of our products and service.
