256x128 Dots Transparent Glass Led Screen Display Quick
Installation
Transparent Led Display Board Quick Installation High Transparency
Product description

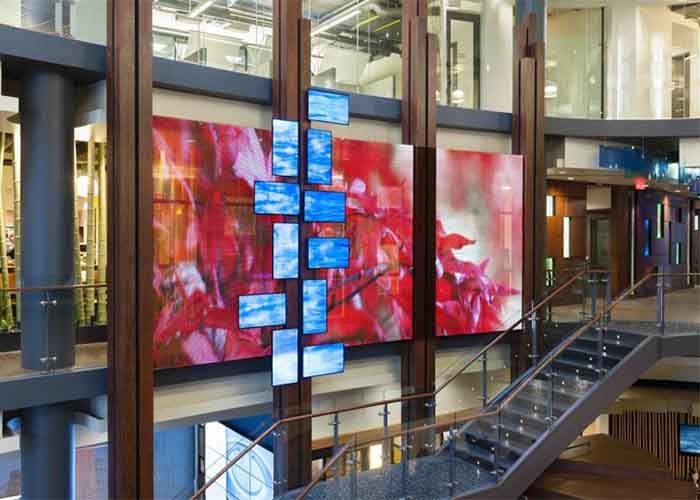

1. Transparent LED Screen is aimed at fix installation in shopping
mall,airport,hotel and car showroom,commercial plazas, commercial
streets, airports, museums, exhibitions, shopping malls,
supermarkets, theaters, hotels, etc
2. By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc.
Yes, you can control in your convenient management. Many screens
together? No problem, your laptop can manage all of them whenever
and wherever.
3. Even in the sun, it is still radiant and transparent, and the
picture is vivid
4. Reduce the load-bearing requirements of the building, and make
the building look more concise and beautiful.
5. SMD 3 in 1 LED Encapsulation technology
6. With high refresh rate and high grayscale, the picture is vivid
and meets the requirements of high visual quality.

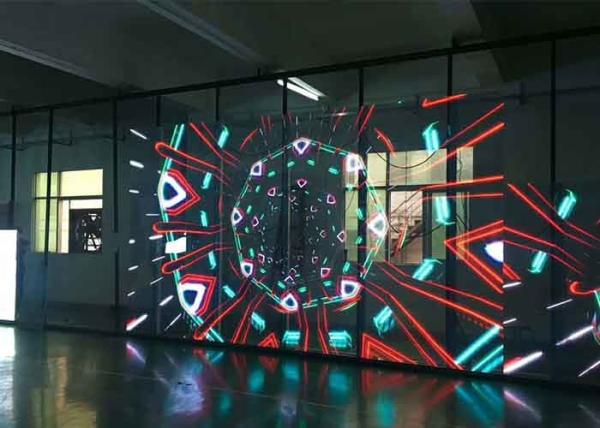

7. With a novel and unique display effect, the audience stands at
an ideal distance to watch, and the picture is suspended on the
glass curtain wall.
8. No steel frame structure is needed, saving a lot of installation
and maintenance costs, and the installation and maintenance are
simple and convenient.
| Pixel Pitch | 3.91-7.8mm |
| Cabinet Size(WxH)(mm) | 1000x500mm |
| Cabinet resolution WxH | 256x128dots |
| Cabinet Material | Aluminum profile |
| Cabinet Weight (kg) | 4.5 |
| Average Power/sqm (watts) | 240 |
| Max Power/sqm(watts) | 800 |
| Brightness | 3000-3500cd/㎡ |
| Viewing Angle | H:120°, V:160° |
| Best Viewing Distance | 3.91-200 meters |
| Brightness Control | 256 level |
| Gray scale | 16 bit |
| Refresh frequency | 1920hertz |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP30 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
One- Stop Solution Service
1. 3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2. Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3. 7/24 online remote control service , and local engineer service
within 8 hours contact.
4. Free technical training in factory.
5. MPLED engineers will fly to the site if you need local service.
6. Expanding market plan with professional MPLED team over 8 years
experience.
7. Multiple options for global transportation, like FOB, CIF, DDP,
DDU to most countries.
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs,
you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all
product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken
by us to assure that the goods are in a good condition during
storage and delivery.
Q6: How about the size of project?
A: Please offer the size with "width by height" of project. We will
offer the suitable solution for your project size. I will
appreciate it if any drawing files about installation offered.
LED display,also called led screen, led video wall, or led sign,
with its unique advantages,has gradually replaced the traditional
billboards, light boxes,projectors etc. LED display has become a
new force in the media industry.
