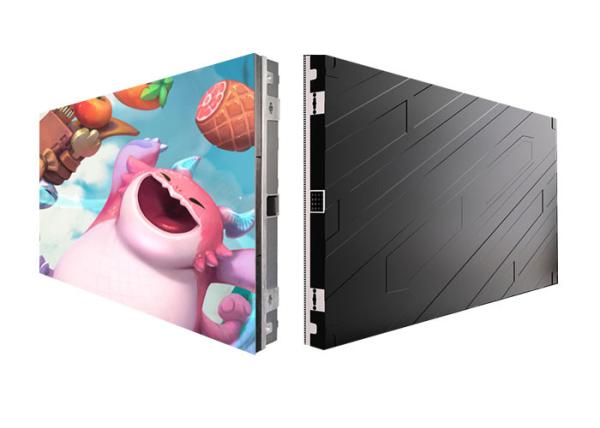

8K RGB UHD Flexible Led Panel Screen Display Magnetic Front Service
3840HZ
8K RGB UHD 16:9 Magnetic Front Service P1.875 Led Video Wall Screen
Product description
1. The product uses frameless design. With the help of professional
sewing software, the spliced screen becomes a complete large
display screen.
2. The module has its own calibration data storage function to
ensure that the uniformity of the screen brightness and
chromaticity will not be affected after the module is replaced.
3. It can be intelligently adjusted according to the color gamut of
the image, evaluate the color accuracy, calibrate the color, match
the color gamut of the display with the color gamut of the source
image, highly reproduce natural scenes, achieve high color
fidelity, and accurately restore the national flag in government
activities color.
4. 16:9 HD & 4K pixel-to-pixel resolution.
5. By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc.
Yes, you can control in your convenient management. Many screens
together? No problem, your laptop can manage all of them whenever
and wherever.
| Pixel Pitch | 1.8mm |
| LED Lamp | SMD1515 |
| IC | ICN2153 |
| Module Size | 320x160mm |
| Module pixels | 172x86dots |
| Cabinet Size(WxH)(mm) | 680x480mm |
| Module Quantity(pcs) | 6 |
| Cabinet resolution WxH | 344x256dots |
| Cabinet Material | Aluminum die casting |
| Cabinet Weight (kg) | 7 |
| Average Power/sqm (watts) | 200 |
| Max Power/sqm(watts) | 600 |
| Brightness | 800cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 1.8-200 meters |
| Brightness Control | 256 level |
| Gray scale | 16 bit |
| Refresh frequency | 3840hertz |
| Driving mode | 1/43 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP30 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
Projects
2017, MPLED P6 outdoor led display assist for Senator Election of
South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in
Russia
2019, MPLED P2.97 stage led display stand the stage for Senator
Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in
Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in
Kuwait landmark
FAQ
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized
in led display industry for more than 7 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority. Brighter people always attach great
importance to quality controlling from the very beginning to the
very end. We focus on every detail,Our factory has gained ISO9001,
ISO14001, CE, RoHS ,FCC authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led
modules and 10-12days for the led finished screen according to the
size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including
the operation and maintenance training of the LED screens in our
factory. we can send an engineer team to the country of the
customer to instruct the installation.
Q6:How long is the warranty?
A6:The standard warranty is 2 year. It could be longer upon
request.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED lamp,
IC, mask, power supply, receiving card, etc.
