Full Color P8 Outdoor LED Advertising Screen Display 320x160mm
Low Power Consumption Outdoor Full Color P8 Led Billboard
Advertising
Product description
1. Rich models to meet different viewing distances,P2.5 P3 P4 P5 P6
P8 P10(320x160mm) can be replaced directly.
2. The heat dissipation capacity is 10 times that of the
traditional iron/steel cabinet, and the cabinet itself is the first
level of heat
dissipation.
3. IP65 waterproof level can ensure stable operation of the screen
even in extreme weather below:Typhoon,Rainstorm ,High Temperature
,Low Temperature ,High Humidity ,Salt Spray.
4. Anti-UV and anti-oxidant mask.
5. The 304 stainless steel screws and locks, the aluminum panel,
and the double protection of strongly-insulated wires wrapped in
fiberglass, thereby ensuring longer service life of our products.
6. The most advanced automated production equipment and
professional team, selection of first-class raw materials, strict
raw materials and process control.

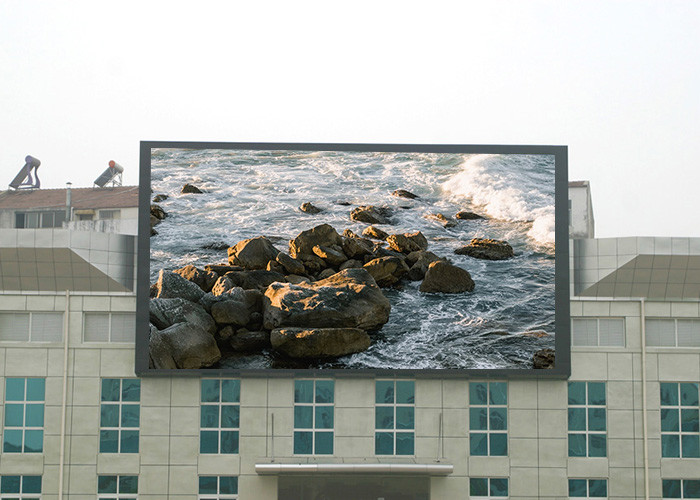

7. Advertising billboards, landmark billboards, street view
billboards, digital billboards, transportation hub billboards,
stadiums.
8. It can turn on and turn off the screen by software timing or
manually at any time, achieving unattended function.
| Pixel Pitch | 8mm |
| LED Lamp | SMD3535 |
| LED configuration | SMD 3 in 1 |
| Module Size | 320mm x 160mm |
| Module pixels | 40x20dots |
| Cabinet Size(WxHxD)(mm) | 960x960x108mm |
| Module Quantity(pcs) | 18 |
| Cabinet resolution WxH | 120x120dots |
| Cabinet Material | magnesium alloy |
| Cabinet Weight (kg) | 29 |
| Average Power/sqm (watts) | 240 |
| Max Power/sqm(watts) | 800 |
| Brightness | 6500cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 8-200 meters |
| Brightness Control | 256 level |
| Gray scale | 14 bit |
| Refresh frequency | 1920hertz |
| Driving mode | 1/5 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP65 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
FAQ
Q1:What is the control system? How is it?
A:We use Nova Taurus Series asynchronous control system. Support
cluster play and managementSupportAPP/PhoneWIFIIpad/Laptop/PC/Cloud
control. It's very easy and convenient to control.
Q2:What is your best service?
A:One to one sales engineer to customer responsibility system. We
will do:
1. Know your proiect and provide the best solution for it
2. Track your order and let you know each step and detail of it:
3. Teachyou how to install and use the screen;
4. Care the subsequent use of your screen and ensure vour after
-sales service be well
Q3:How about your delivery time?
A:Generally. it will take 15 to 25 days after receiving your
advance payment. The spe- cific delivery time depends on the items
and the quantity of your order.
Q4:How about your Warranty Term?
A:2-5year warranty. Structure design,installation problem,program
the screen. how to use the screen... don't worry,we have
professional after-sale team to solve your any questions after you
placed an order. And your exclu-sive sales engineer will also help
you get over any problems.
Q5: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election
of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in
Russia
2019, MPLED P2.97 stage led display stand the stage for Senator
Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in
Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in
Kuwait landmark
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project
execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections
of led display which guide for site cable arrangement and structure
preparation in advance.
3.7/24 online remote control service , and local engineer service
within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years
experience.
7.Multiple options for global transportation, like FOB, CIF, DDP,
DDU to most countries.
